7 steps to optimize your copper coil slitting line formaximum efficiency

You can make your plant work better by improving your Copper Coil Slitting Line. Data from factories shows that automation and new controls help make things more exact and cut down on stops.

Aspect	Details
Efficiency Improvements	Automation, PLC-based control, servo drives, automatic blade positioning, remote monitoring
Impact on Efficiency	Better precision, less downtime, better use of copper coils
Market Growth (2024-2029)	CAGR 5.3%, market value may go over USD 1.9 billion

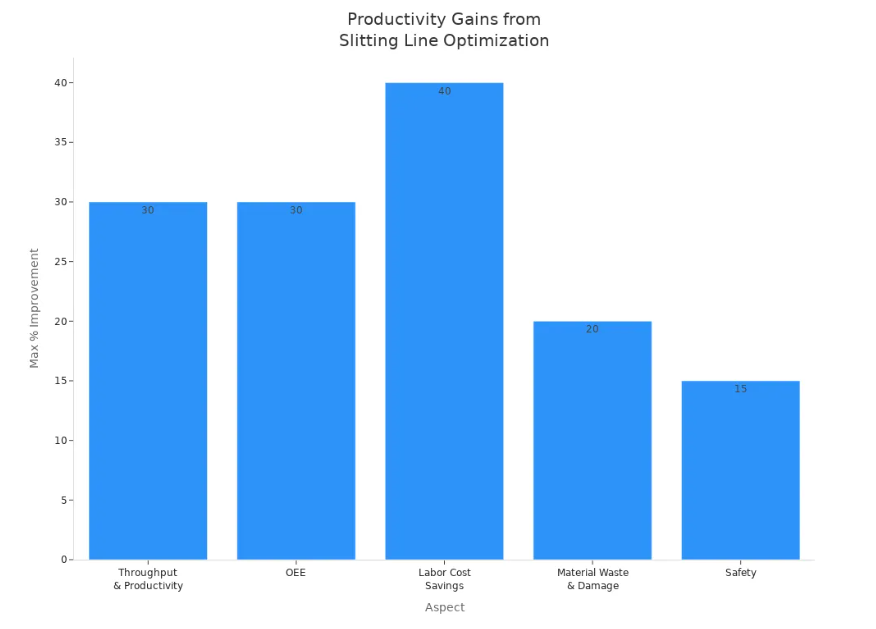

New studies show that automation can make more products by up to 30%. It can also lower labor costs by as much as 40%.

You should look at your current process to find ways to make it faster, better, and safer.

Key Takeaways

· Use automation on your copper coil slitting line. This helps you work faster. It also lowers labor costs. You can cut downtime by up to 70%.

· Move and store coils with care. Keep them in dry, cool places. Use the right racks. Make sure workers are trained. This stops damage and rust.

· Pick the best blades for the job. Change tools quickly. This gives you cleaner cuts. You will waste less material. Your machine will run longer.

· Keep tension steady at all times. Make sure strips stay straight. This stops wrinkles and edge waves. It also keeps coils safe. Your product will look better.

· Clean your machines often. Take care of them well. This stops breakdowns. Your tools will last longer. The product quality will improve.

Coil Handling

Good coil handling is very important for a smooth Copper Coil Slitting Line. If you store and uncoil copper coils the right way, you can stop many problems. Doing things right at this step helps you avoid mistakes, save time, and keep your line working well.

Entry Storage

You need to store copper coils carefully so they do not get damaged or rusty. Here are some easy ways to keep your coils in good shape:

Keep coils in a cool and dry place with steady temperatures. This helps stop rust and water damage.
Use strong supports like wooden or steel pallets. Put coils upright or on their sides, based on your racks.
Do not stack coils too high. Slit coils should be stacked no more than three high. Master coils should be stacked no more than two high.
Use tape or bands to hold the outer wraps before moving coils.
Only let trained workers move coils. Use the right tools, like forklifts with coil parts or C-Hooks.
Check skids and racks often. Change any that are broken or worn out.
Keep coils away from busy walkways so they do not get hit or dropped.

Tip: Dry any wet coils within 72 hours to stop rust from forming.

Uncoiling

Uncoiling is a very important step that can change how the whole slitting process works. If you set up the uncoiler the right way, you will have less downtime and fewer mistakes. Here are some things to remember:

Key Factor	Why It Matters
Secure Coil Mounting	Keeps the coil steady and stops damage while unwinding.
Controlled Unwinding Rate	Stops sudden pulls that can cause problems or stops.
Proper Tension Maintenance	Makes sure the coil keeps its shape and gives clean cuts.
Pressing Mechanisms	Stops the coil from getting loose and causing trouble.
Automatic Centering & Guide Correction	Keeps the coil lined up for better slitting and fewer mistakes.
Advanced Control Systems	Lets you make quick changes for more steady work and less downtime.
Hydraulic Uncoilers	Makes loading heavy coils safer and gives better tension control.
Regular Maintenance	Stops machines from breaking and keeps things running.

You should use pressing tools and automatic centering to keep the coil tight and straight. New uncoilers with hydraulic systems help you load heavy coils faster and safer. Checking your machines often and making quick fixes helps you avoid sudden stops and keeps your Copper Coil Slitting Line working well.

Tool Selection

Choosing the right tools for your slitting line makes a big difference in both quality and speed. You need to focus on two main areas: blade choice and tool changeover. Each step helps you get cleaner cuts, less waste, and more uptime.

Blade Choice

You must pick the right blade for your copper coils. The blade you use affects how smooth and accurate your cuts are. If you use the wrong blade, you might see rough edges, burrs, or even damage to the coil. Good blade selection gives you clean, burr-free edges and keeps your strips the same width every time.

When you choose a blade, think about these points:

Material type and thickness matter most. For thin copper strips, high-speed steel or alloy tool steel blades work well. For thicker or harder metals, tungsten carbide blades last longer and cut better.
Blade hardness and toughness help the blade last longer and keep its sharp edge.
Special coatings, like TiN or Al₂O₃, can make blades resist wear and heat.
The right blade geometry and clearance prevent damage and keep cuts precise.

Tip: Use cemented carbide blades like YG6 or YG8 for soft copper up to 2mm thick. For ultra-thin copper foils, try precision blades such as YG3X.

A good blade choice means you spend less time sharpening or replacing blades. You also get less scrap and better results in later steps like stamping or forming.

Tool Changeover

Fast and accurate tool changeover keeps your line running smoothly. If you take too long to change blades or set up new tools, you lose valuable production time. You can avoid this by planning your changeovers and using the right equipment.

Here are some ways to improve tool changeover:

Organize your tools and keep them close to the slitting line.
Use quick-release systems or automatic blade positioning to speed up swaps.
Train your team to follow a clear changeover process.
Check tool shafts and knives for alignment before starting the line again.

A well-managed changeover process reduces downtime and helps you keep up with tight schedules. You also lower the risk of mistakes that can cause defects or waste.

Tension Control

Steady Tension

It is important to keep the tension steady on the copper strip. If the tension changes a lot, you can get wrinkles or edge waves. Sometimes, the coil might even break. Good tension control helps you get flat and smooth strips every time.

Here are some ways to keep tension steady: Use tension brakes or dancer rolls to control the pull. Adjust the uncoiler and recoiler speeds so they match the line speed. Check tension sensors often to make sure they work well. Set up feedback systems that can change tension right away.

When you keep tension steady, the strip does not move too fast or too slow. This helps stop defects and keeps your line running longer. You also protect the strip from damage. This means less waste and better quality.

Tip: Check your tension control devices often. Worn parts can change tension quickly and cause defects.

Strip Alignment

Getting the strip lined up right is very important for good slitting. If the strip moves off-center, you can get uneven cuts or burrs. Sometimes, the coils can even get damaged. You can use edge guides and automatic centering systems to keep the strip in place.

Good alignment gives you many benefits: Sharp rotary blades cut strips to the right width with clean edges. Steady tension and the right feeding speed stop uneven feeding and coil damage. The uncoiler and recoiler work together to keep the strip steady and stop edge damage. Rotary knives need to be lined up right for clean cuts. Spacers keep the right gaps between knives, which is important for tight width. Good tensioning systems stop problems like telescoping, burrs, and edge waves. Regular maintenance and careful setup help your line run smoothly and make high-quality strips. Checking insert clearance and adjustment before you start helps stop defects. Computer-controlled adjustments in automated lines help blades stay in the right spot.

You should always check alignment before you start a new job. This step helps you make less scrap, lower waste, and keep your slitting line working its best.

Drive Systems

Calibration

It is important to keep your drive systems calibrated. Calibration means setting motors and controls to the right speed and tension. If you do not calibrate, you may get uneven cuts or rough edges. Sometimes, machines can even break down.

Modern drive systems use direct drive linear motors with ironless coil assemblies. These motors do not have steel teeth. This gives smooth motion and no cogging at low speeds. You can control speed and position very well. Speed changes stay within 0.2% at normal speeds. At very low speeds, changes stay within 2.5%. This helps keep tension steady and stops defects.

Tip: Check calibration settings often. Use built-in diagnostics to find problems early.

You can use PLCs and HMIs to make setup and monitoring easier. These tools let you change settings fast and see real-time data. Real-time diagnostics and IoT alerts help you fix issues before downtime happens.

Servo Upgrades

Upgrading to servo drive systems has many benefits. Servo drives give tight control over speed and position. They only use energy when needed, so you save power. You can run your line faster. Some upgrades boost speeds from 350 feet per minute to 600 or even 850 feet per minute.

Here are some key benefits of servo upgrades:

Tighter control over traverse position for better accuracy and repeatability
Lower energy use compared to hydraulic systems
Higher output and faster running speeds
Better tension control for smooth edges and less scrap
Automated ramp-up and stopping to reduce waste
Easier troubleshooting with advanced diagnostics
Quick installation with little downtime

A servo system helps keep strip width and edge quality the same. Automated knife positioning and adaptive tension control stop defects, even at high speeds. You can watch your line in real time and make changes fast. This upgrade helps both productivity and sustainability.

Copper Coil Slitting Line Automation

Automated Loading

You can make your work faster with automated loading. These systems use hydraulic coil cars and servo-driven parts to move coils. They pick up and place coils very accurately. You do not have to lift coils by hand or guess where they go. Automated loading helps stop injuries and keeps your line running.

Here is a table that compares manual and automated loading:

Feature/Metric	Manual Slitting Line	Kinbenz Automatic Slitting System
Coil Loading Method	Manual	Hydraulic loading with coil car
Tension Control	Manual adjustments	Automatic precision tension control
Coil Changeover Speed	45–60 minutes	10–15 minutes
Operator Involvement	High	Low
Error Rate	Moderate	Low
Downtime Risk	High	Low

Automated systems use smart coil-picking and gripping heads that can change size. You can use overhead cranes or forklifts to help load coils. You do not need to stop the line to load different coil sizes. Unloading is easier with roller conveyors and pallet systems. These tools help you set up faster, make fewer mistakes, and keep workers safe.

Tip: Automated alarms and diagnostic systems warn you about problems early.

Slit Separation

Automated slit separation makes the process quicker and more exact. After cutting, the system uses tension-controlled winders and spinning blades. These tools separate strips and wind them into smaller coils. You get tight, neat coils every time.

Modern slit separation uses smart control systems, vector frequency motors, and hydraulic pressure devices. These keep tension steady and stop coils from getting loose. You can pick different modes for different materials. This helps you work faster and stops machine problems.

Technology/Feature	Description	Efficiency Gains/Benefits
Intelligent control system	Runs the machine by itself and lowers accidents	Saves labor, gives better quality
Vector frequency conversion motor	Controls tension automatically	Safer, better tension control
Hydraulic adjustable back pressure mechanism	Keeps pressure steady during slit separation	Better slit quality, steady work
Pinch feeding system	Feeds material at the same speed as the line	Smooth feeding, steady operation
Free tension design	Keeps finished coils tight while winding	High-quality finished coils

You save time, make less waste, and get better products. Automation in slit separation also means you need fewer workers and your Copper Coil Slitting Line works better.

Cleaning and Maintenance

If you keep your machines clean, they work better. Clean machines break down less often. You should have a regular cleaning and maintenance plan. This helps protect your machines and makes your products better.

Routine Cleaning

Clean your slitting equipment every day and every week. This stops dust, metal shavings, and oil from piling up. When machines are clean, they last longer and work well. Here are some easy steps:

Look for worn parts, like coated separators. Change them if needed.
Wipe shafts and separator surfaces to stop rust and jams.
Keep all parts in a dry place to stop rust.
Take away dust, debris, and leftover material from everywhere.
Make sure all parts are put in and spaced right to stop damage.

Tip: Use the right cleaners and follow a cleaning plan. Clean sensors so they do not make mistakes and your line stays safe.

A clean machine is not just nice to look at. It works better and helps you avoid big repairs. Clean parts do not get stuck or break as much.

You can use this table to help plan your cleaning and maintenance:

Maintenance Level	Frequency	Key Activities	Purpose/Benefit
Level 1	Daily and Weekly	Clean debris, add oil, test if things work, clean sensors to stop blockages	Stop quick breakdowns, keep sensors working
Level 2	Monthly and Quarterly	Add more oil, check for worn parts like belts and rollers, fix alignment, check sensors	Stop big problems, keep machines working longer

Lubrication

Lubrication helps your machines run smoothly. The right oil or grease lowers friction and wear. This makes your tools and dies last longer. Your products also look better.

Polymer lubricants, like Gardolube L 6332, are good for cold forging and extrusion. They lower friction and help dies last longer.
Water-soluble lubricants, such as Oakite Gardolube VP 10300/1, work for blanking, piercing, and forming. They stop rust and keep tools clean.
Versatile lubricants, like Draw Clean 36P, keep dies cool and stop sticky buildup.

Lubricants make a barrier between metal parts. They fill small spaces and make surfaces smoother. This helps you make better products and run your line faster. Using the right lubricant saves money on tools and helps you make more products.

Yield Optimization

Maximizing yield on your Copper Coil Slitting Line means you get more usable product and less waste. You can achieve this by focusing on both scrap handling and material utilization. These steps help you save money, protect the environment, and keep your operation running smoothly.

Scrap Handling

Efficient scrap handling keeps your line clean and reduces downtime. You can choose from several systems to manage scrap, each with its own strengths:

Scrap Handling System	Suitable Thickness Range	Key Features	Advantages	Limitations
Scrap Baller	0.005–0.187 in.	Compacts scrap into balls after line stops	No tension on scrap, less operator distraction	Needs large pit, works only after line stops
Scrap Winder	0.010–0.500 in.	Pulls scrap under tension during run	Keeps tension steady, good for medium gauges	Light scrap may break, heavy scrap hard to thread
Scrap Chopper	0.010–0.750 in.	Chops scrap after slitter head	Handles thick scrap, higher scrap value	Needs frequent knife care, higher cost

You should also use proper safety gear and train your team to handle scrap safely. Store coils on stable racks and inspect your equipment often. Use the right lifting tools for each coil size. Set clear steps for loading and unloading to avoid mistakes and extra scrap.

Tip: Regular maintenance of slitter knives and tension units helps you avoid unplanned stops and extra waste.

Material Utilization

You can get more product from each coil by using smart material handling and layout choices. Try these steps:

Pick coil handling systems designed for your needs, not just universal ones.
Use vertical racks to save floor space.
Add hold-down peelers for faster threading and less waste.
Use paddle loop controls and horizontal reels for narrow coils.
Try stagger blanking to use more of each coil.
Keep your uncoiling and straightening equipment running as much as possible.
Use coil tippers and upenders to move coils easily and safely.

Modern automation and software help you cut more precisely and use less energy. These upgrades also help you meet environmental rules and reduce your plant’s footprint. Less waste means you save money and help the planet.

You can make your Copper Coil Slitting Line work better by using these seven steps. If you add automation and check your machines often, you will have fewer stops and better products. The table shows how much you can get better:

Benefit Category	Quantifiable Improvement
Unplanned Downtime	Reduced by 50-70%
Equipment Uptime	Increased by 10-20%
Overall Yield	Improved by 5%
Operational Output	Increased by 30%
Labor Cost Reduction	Decreased by 20-30% within 1 year
Throughput Increase	Up to 30%
Cycle Time Reduction	Up to 50% in specific operations

Keep watching your process and try new ideas to get better. You can use OEE software, do regular checks, or train your team to keep your line working well.

FAQ

What is the best way to prevent copper coil damage during storage?

You should store coils in a dry, cool place. Use strong racks or pallets. Do not stack coils too high. Always move coils with the right tools. Check for rust or dents before using each coil.

How often should you clean your slitting line?

You should clean your slitting line every day. Wipe away dust and metal shavings. Check for oil leaks. Clean sensors and moving parts. A clean line works better and lasts longer.

Why does tension control matter in copper coil slitting?

Tension control keeps the copper strip flat and smooth. If tension changes, you may see wrinkles or edge waves. Good tension control helps you get clean cuts and less scrap.

What are the signs that your blades need changing?

Look for rough edges, burrs, or uneven cuts on the copper strips. If you see more scrap or hear strange noises, check your blades. Dull blades can damage your product.

Can automation really reduce downtime?

Yes! Automation helps you load coils faster and change tools quickly. You make fewer mistakes. Automated systems warn you about problems early. This means your line stops less and you make more good products.
