Understanding the Definition and Main Parts of a Metal Slitting Line



A metal slitting line is a specialized machine system that cuts wide coils of metal into narrower strips. This process boosts production capacity by 30-40% compared to manual methods and can handle coil weights up to 40 tons. Companies use these lines to reduce scrap rates by up to 30%, which improves material yield and lowers costs. Understanding each main part of the system helps operators achieve better quality and higher efficiency in metal processing.

Key Takeaways

1. A metal slitting line cuts wide metal coils into narrow strips quickly and accurately, improving production speed and reducing waste.
2. The main parts—uncoiler, slitter, and recoiler—work together to keep metal steady, cut clean strips, and wind finished coils neatly.
3. Proper setup and regular maintenance of blades, tension devices, and supporting parts ensure high-quality strips and smooth operation.
4. Metal slitting lines serve many industries like automotive, construction, and manufacturing by providing precise metal strips for various products.
5. Using the right settings for different metals and following clear process steps helps operators achieve better results and extend machine life.



Metal Slitting Line Overview

Definition

A metal slitting line is a machine system that cuts wide coils of metal into smaller, narrower strips. This equipment uses a series of sharp rotary blades to slice the metal as it moves through the line. Each strip, called a slit coil, matches specific width requirements for different manufacturing needs. The machine can handle various metals, such as steel, aluminum, and copper. Operators load a large coil onto the line, and the system automatically feeds the material through the cutting area. The process creates multiple strips in a single pass, which saves time and reduces manual labor.

Note: The metal slitting line works best when operators set the correct blade spacing and tension. Proper setup helps prevent rough edges and ensures each strip meets quality standards.

Purpose

The main purpose of a metal slitting line is to prepare metal strips for further processing or assembly. Many industries, such as automotive, construction, and appliance manufacturing, need metal in specific widths. The metal slitting line provides these custom sizes quickly and accurately. This system helps companies reduce waste by using more of the original coil. It also improves production speed and lowers costs.

Manufacturers rely on the metal slitting line to deliver consistent results. The machine supports high-volume operations and can run for long periods without stopping. By using this equipment, companies can meet customer demands for precise metal strips and maintain a steady workflow.

Uncoiler

Metal Slitting Line Components

Uncoiler

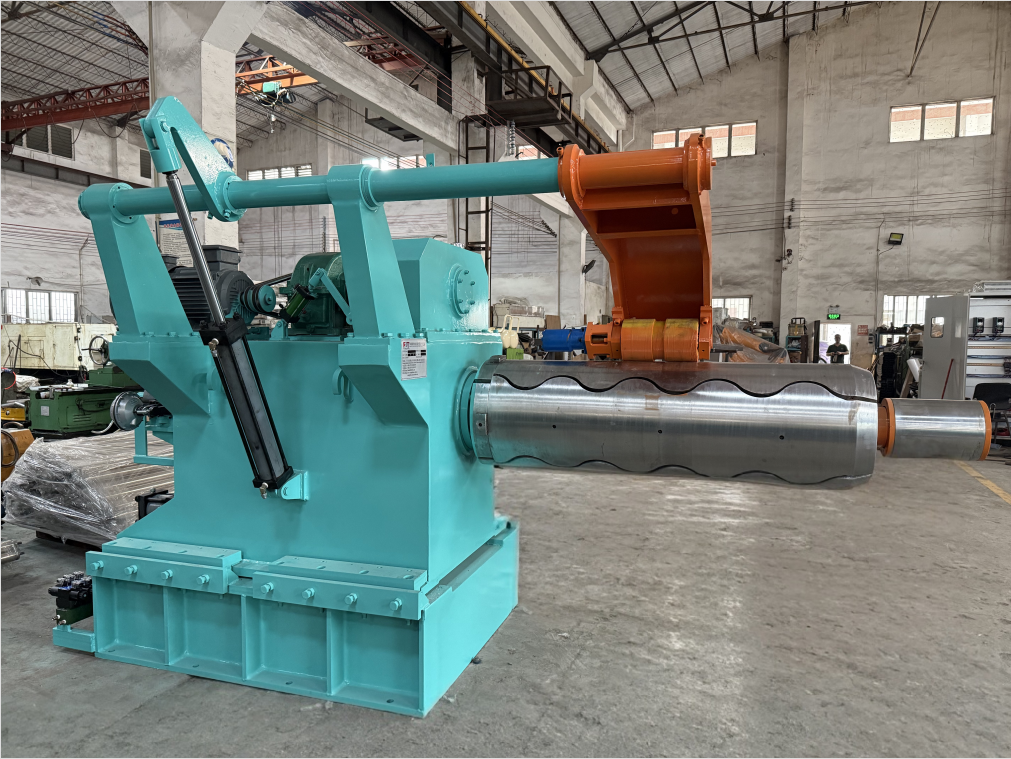

The uncoiler starts the process in a metal slitting line. It holds the large coil of metal and feeds it into the system. The uncoiler must keep the coil steady and release the metal at a controlled speed. This helps prevent problems like uneven feeding or coil damage. Operators rely on the uncoiler to keep the line running smoothly and safely.

Some important performance metrics for uncoilers include:

1. Tension uniformity: Keeps the metal tight for accurate slitting and prevents defects.
2. Feeding smoothness: Moves the coil without jerks or stops, which keeps quality high.
3. Downtime minimization: Reduces stops and starts, so production stays efficient.
4. Throughput maximization: Increases the amount of metal processed in less time.
5. Defect prevention: Avoids problems like edge waves, camber, and telescoping in the slit coils.
6. Versatility: Handles different coil sizes and materials for many uses.
7. Automation features: Uses hands-free threading and connects with control systems to boost safety and efficiency.

A well-designed uncoiler helps the whole line work better and reduces waste.

Slitter

The slitter is the heart of the metal slitting line. It uses sharp rotary blades to cut the wide metal coil into narrow strips. The slitter must cut each strip to the correct width with clean edges. High-quality slitters use advanced blades, precise alignment, and steady tension to make sure every strip meets strict standards.

Studies show that modern slitters can cut 20% faster and reduce material waste by 25%. Defect rates can drop to as low as 0.4%. These results come from using sharp blades, accurate arbors, and advanced tension controls. Many lines use laser-based edge inspection to measure the cut edges and spot defects early. This technology sends alerts to operators, so they can fix small problems before they become big ones. Routine maintenance, like sharpening blades and cleaning, also keeps the slitter working at its best. Automated control systems help position the blades and manage tension, which reduces mistakes and keeps cuts precise.

Recoiler

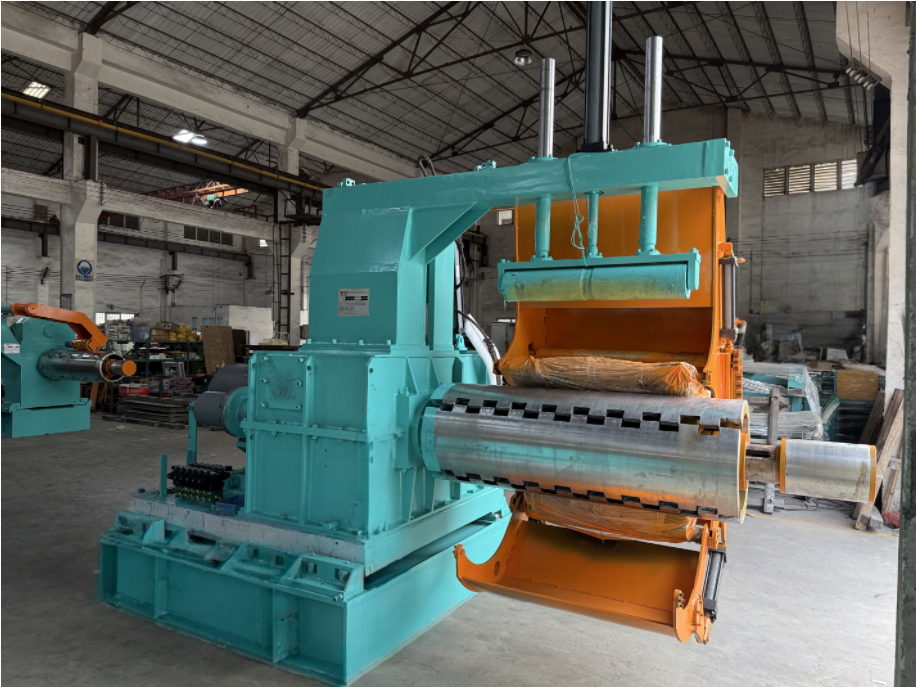

The recoiler collects the narrow strips after slitting and winds them into new coils. This part must keep the strips tight and even. If the recoiler works well, the finished coils stay neat and easy to handle. The recoiler uses hydraulic systems to control tension and prevent loose winding. This helps keep the line stable and the product high in quality.

Operators check the recoiler for smooth operation and proper tension. A good recoiler prevents problems like loose or uneven coils, which can cause trouble in later steps.

Additional Parts

Many supporting parts help the main components work together. These parts keep the metal slitting line stable, accurate, and safe. The table below lists some key supporting parts and their roles:

Component	Key Features and Functions	Performance Impact on Metal Slitting Line Operations
Base Frames	Strong welded steel construction supports the whole line.	Gives stability and reduces vibration, which helps the line run smoothly.
Tension Devices	Control tension in the recoiler and uncoiler to keep coils tight.	Prevents loose winding and damage, keeps tension steady for smooth operation.
Rollers (Leveler and Precision Leveler Devices)	Use gears and motors to flatten and guide the metal accurately.	Improve cutting precision, speed up the line, and ensure accurate feeding.
Pinching Devices	Use power wheels to grip the strip; need clean surfaces to work well.	Stop slippage and wear, making sure the strip moves reliably and parts last longer.
Guiding Tables	Adjustable guides keep the coil in the right place and prevent edge damage.	Keep positioning accurate and protect the edges for better cutting.
Conveyor Devices	Made from strong steel pipes and plates; move the metal through the line.	Help feed and position the metal, keeping the line accurate and preventing damage.

Tip: Regular checks and cleaning of these parts help keep the metal slitting line running at top performance.

Operation

Process Steps

A metal slitting line follows a series of organized steps to turn wide coils into narrow strips. Operators begin by loading a large coil onto the uncoiler. The uncoiler holds the coil steady and feeds the metal into the line. Next, the metal passes through a set of rollers that flatten and guide it. The slitter then uses sharp rotary blades to cut the metal into strips of the required width. After slitting, the strips move through tension devices that keep them tight and straight. Edge trimming units remove any rough or uneven edges. Scrap winders collect leftover metal pieces for recycling. Finally, the recoiler gathers the finished strips and winds them into new coils for easy handling.

Each step in the process has a clear purpose. Well-defined steps help operators avoid mistakes and keep the workflow smooth. When companies use automation, computerized controls, and laser alignment systems, they see fewer errors and less downtime. These technologies help maintain quality and speed. Organized process steps, along with modern equipment, make the metal slitting line more productive and efficient. Efficient coil storage and quick tooling changeovers also reduce waiting times and keep the line moving.

Note: Operators should follow each step carefully. Skipping or rushing steps can lead to defects or machine problems.

Component Roles

Each main component in a metal slitting line plays a special role in the operation. The uncoiler starts the process by holding and feeding the coil. It must keep the metal steady to prevent feeding problems. Rollers and levelers flatten the metal and guide it toward the slitter. The slitter acts as the cutting center, using blades to slice the metal into strips. Tension devices keep the strips tight, which helps prevent wrinkles and uneven edges. Edge trimmers remove any rough parts from the sides of the strips. Scrap winders collect leftover pieces, keeping the work area clean and safe. The recoiler finishes the process by winding the strips into neat coils.

Supporting parts, such as guiding tables and conveyor devices, help move the metal smoothly from one stage to the next. These parts keep the metal in the right position and protect it from damage. When each component works well, the whole line runs faster and produces better-quality strips. Companies that choose the right components for their needs see less downtime and higher output.

Tip: Regular checks and maintenance of each component help prevent breakdowns and keep the line running at top speed.

Recoiler

Importance of Components

Quality

Each component in a metal processing system plays a key role in the final product’s quality. High-quality parts help create metal strips with smooth edges and accurate widths. When operators use well-maintained blades and tension devices, the strips show fewer defects. Clean cuts and even surfaces reduce the risk of cracks or weak spots. A scientific study on surface integrity in metal machining shows that the quality of machined components, especially the surface layers, affects how well they perform. Good surface integrity helps the metal resist fatigue, corrosion, and wear. This means the strips last longer and work better in their final use.

Operators check each part for wear and damage before starting the line. They replace dull blades and adjust tension devices to keep the process stable. Regular cleaning of rollers and guides also helps prevent scratches or dents on the metal. Companies that focus on quality see fewer returns and higher customer satisfaction.

Tip: Keeping all parts in top condition leads to better product quality and fewer problems during production.

Efficiency

Efficient operation depends on how well each component works together. When the uncoiler, slitter, and recoiler run smoothly, the line moves faster and produces more strips in less time. Well-designed tension devices and guiding tables help keep the metal straight and prevent jams. This reduces downtime and keeps the workflow steady.

A direct link exists between component quality and operational efficiency. The study on surface integrity highlights that better control of machining features improves how long parts last and how well they work. This means that when companies use high-quality components, they spend less time fixing problems and more time producing good strips.

Operators use checklists to inspect each part before starting a shift. They look for signs of wear, loose bolts, or misalignment. Quick repairs and regular maintenance help avoid unexpected stops. Companies that invest in strong, reliable parts see higher output and lower costs.

Note: Efficient lines help companies meet deadlines and keep production costs low.

Applications

Industries

Metal slitting lines play a vital role in many industries. Companies in automotive, construction, and manufacturing rely on these machines to prepare metal strips for different products. Each industry uses metal slitting lines to meet strict standards for quality and performance.

Industry	Practical Benefits of Metal Slitting Lines	Examples of Applications	Key Advantages Highlighted
Automotive	Enables precise cutting of components essential for efficient shaping, welding, and assembly.	Door frames, seat brackets, fenders	Ensures reliable, durable vehicles meeting industry standards.
Construction	Produces materials with consistent widths and thicknesses critical for structural integrity and aesthetics.	Roofing sheets, wall panels, ceiling tiles	Supports high-quality materials that meet performance standards.
Manufacturing	Versatile use across various metals and products, adaptable to different applications.	Agricultural vehicles, containers, building materials	Enhances productivity, reduces waste, and offers customization.

Automotive factories use slit metal for door frames and seat brackets. Construction companies need precise strips for roofing and wall panels. Manufacturing plants depend on slitting lines to create parts for machines and containers. These industries benefit from faster production, less waste, and better product quality.

Note: Reliable slitting lines help companies meet deadlines and deliver products that pass safety checks.

Materials

Metal slitting lines handle a wide range of materials. Operators process steel, stainless steel, aluminum, and even pre-painted coils. Each material requires special settings for blade hardness, tension, and speed.

1. Processing speeds range from 30 to 250 meters per minute, depending on the machine and material.
2. Slitting tolerances can be as tight as ±0.1 mm, which ensures accurate strip widths.
3. Blade hardness matches the material, such as HRC 58–62 for stainless steel and carbide-tipped blades for high-carbon steel.
4. Material thickness processed ranges from 0.1 to 8 mm.
5. Coil widths handled span from 500 to 2000 mm.
6. Advanced features like laser-guided alignment and AI-powered monitoring improve quality and reduce downtime.
7. Scrap rates can drop below 1%, and material utilization rates reach up to 98.7%.

Wire EDM works only for metals that conduct electricity, such as Hastelloy and Inconel. These alloys often appear in high-stress or high-temperature environments. Matching the right slitting method to the material ensures strong, precise strips for every application.

Tip: Choosing the correct settings for each material helps operators achieve the best results and extend machine life.

A metal slitting line cuts wide coils into narrow strips using key parts like the uncoiler, slitter, and recoiler. Each part helps improve quality and efficiency. When operators understand every component, they see better results. The table below shows how this knowledge leads to less waste, faster planning, and higher productivity.

Performance Metric	Result Description
Coil weight used for orders	Increased efficiency
Leftovers (retails)	Decreased, better stock management
Scrap	Reduced, less waste
Planning time	Cut from hours to minutes
Model solution optimality	9 out of 11 cases achieved optimal solutions
Productivity	Maximized by meeting customer needs

Learning more about metal processing equipment helps companies stay ahead in the industry.
